Total Solutions for Multi-Tasking Machine Tools
Top-Selling Schaublin Flat-Bed CNC Lathes: 225-CNC & 302Mi-CNC
2026-05-29 10:20:14
Schaublin Top-Selling Models

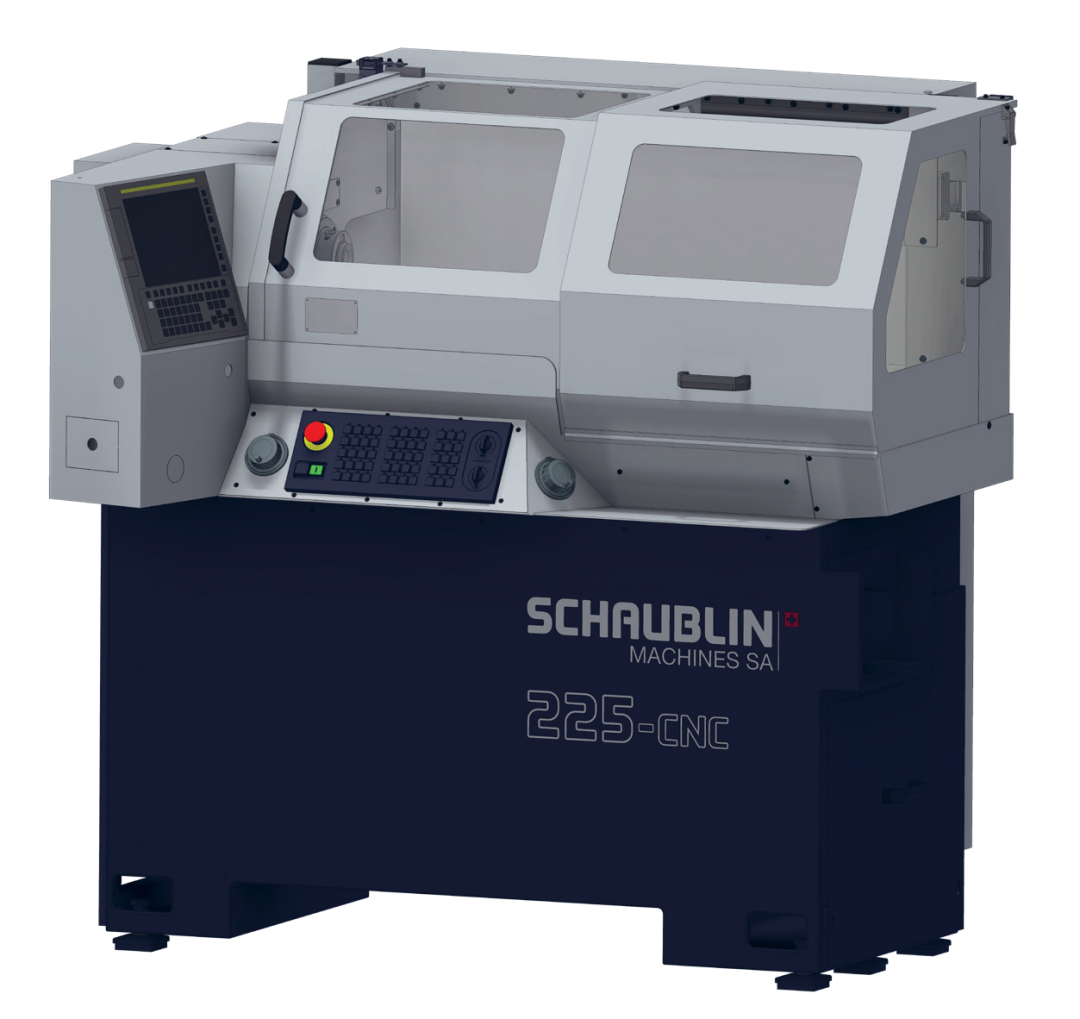

225-CNC
Overview:
A high-precision gang-tool CNC lathe with dual handwheel and CNC operation. It combines the strengths of CNC technology and the simple operation of traditional lathes.
Designed for maximum precision and rigidity, the machine offers superior vibration damping. Fitted with heavy-duty hard guideways and a high-rigidity spindle, it supports hard turning up to HRC 65.
All machines undergo full laser calibration across all axes to ensure reliable long-term performance.
Key Features
Thermal Stabilization System

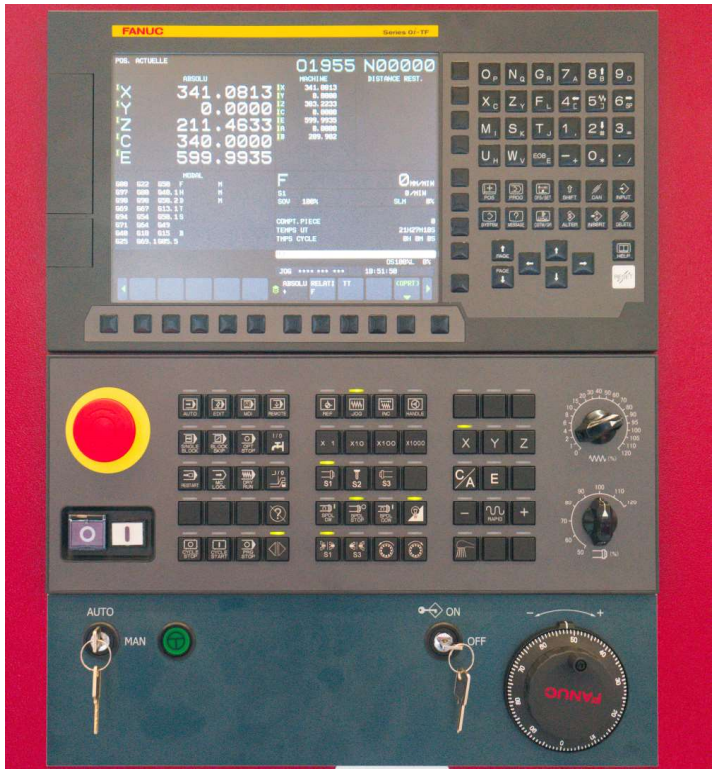

Equipped with the FANUC 0i-TF PLUS control system for complex machining tasks. Graphic programming and USB program transfer simplify daily operation.
Spindle

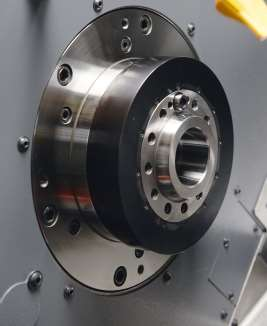

Precision-engineered spindle delivers high torque and power, with face and radial runout limited to 0.5 μm. Built upon Schaublin's mature mechanical spindle design for outstanding rigidity and stability.

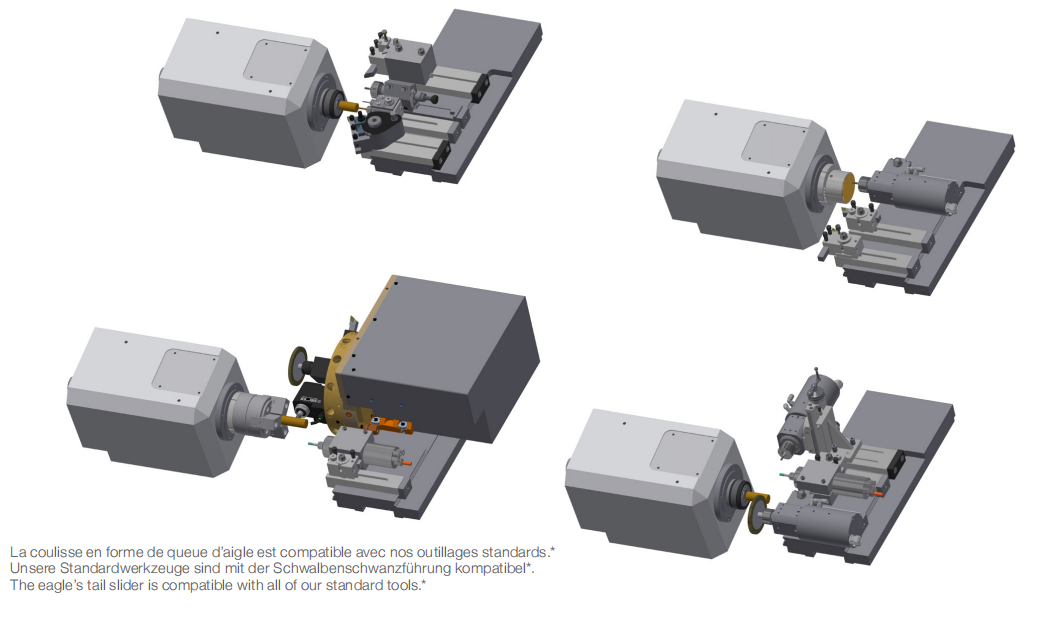

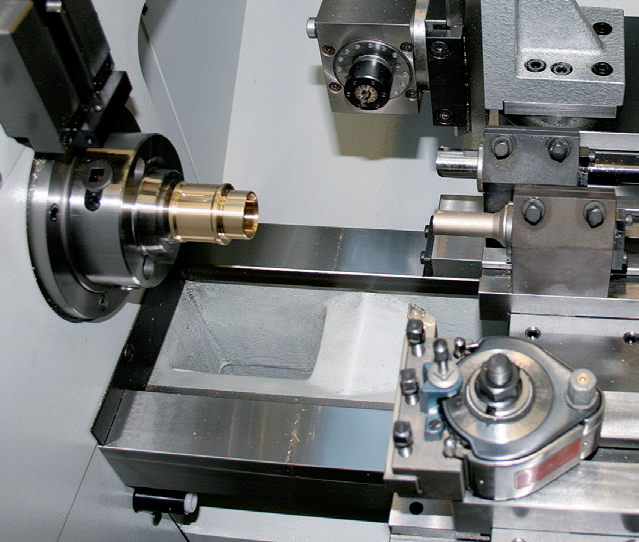

High-rigidity hard guideway gang tool ensures positioning accuracy within 0.005 mm, supporting hard turning up to HRC 65. A complete range of quick-change tooling and accessories is available.
Technical Data
Control Type: CNC / Manual
| Machine Performance | |
| Max. Swing Diameter | 270 [mm] |
| Carriage to Spindle Center Height | 125 [mm] |
| Spindle Speed | 0-5000 [rpm] |
| Spindle Bore | 28 [mm] |
| Travel | |
| X-axis Travel | 136 [mm] |
| Z-axis Travel | 410 [mm] |
| X/Z-axis Programmable Increment | 0.0001 [mm] |
| X/Z-axis Rapid Traverse Rate | 10 [m/min] |
| Lead Screw & Tailstock | |
| Model | Mo.2 |
| Tailstock Travel | 100 [mm] |
| Dimensions & Weight | |
| Overall Dimensions | 1620x1230x1520 [mm] |
| Net Weight | 1200 [kg] |
Schaublin Top-Selling Models

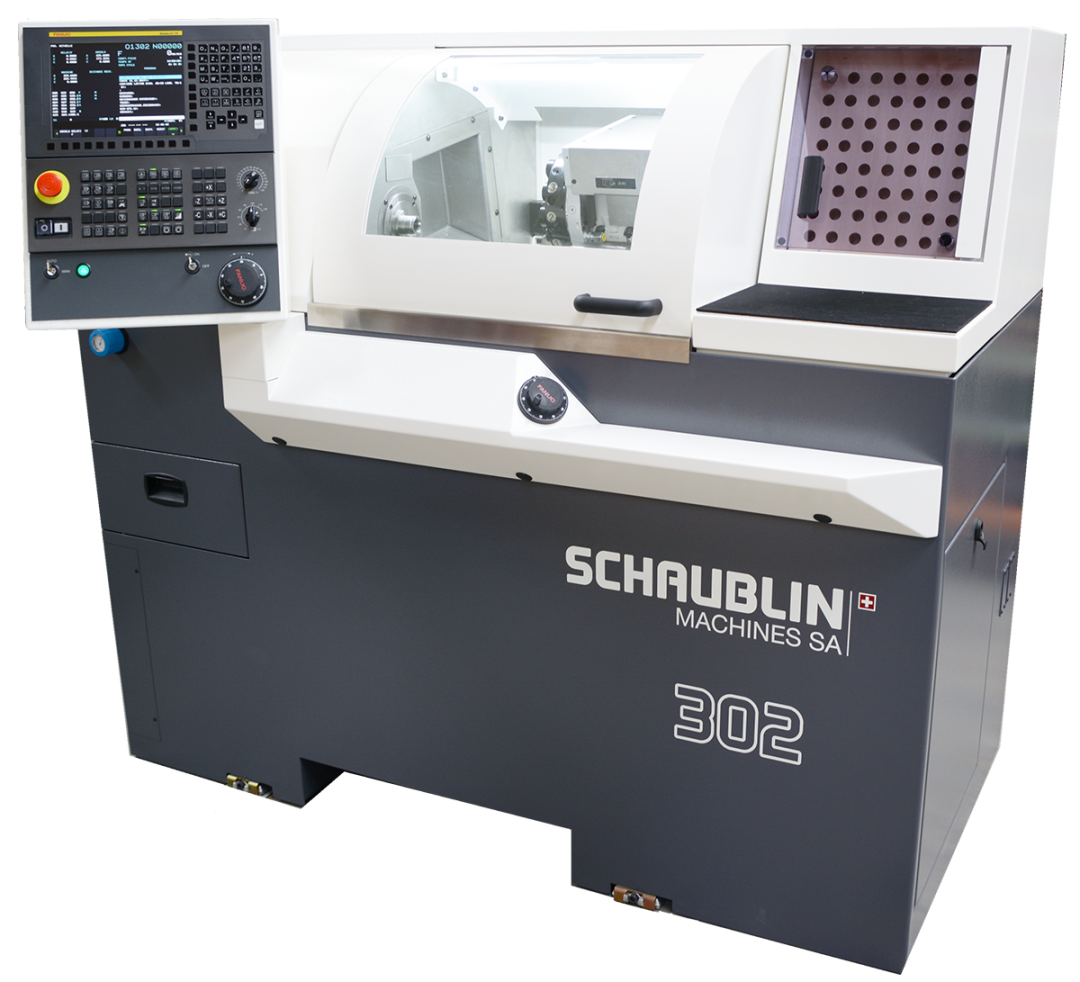

302Mi-CNC
Overview:
A compact high-precision flat-bed CNC lathe, ideal for cost-efficient small-to-medium batch production. It integrates modern and classic design, fitted with the FANUC 0i-TF control system for fully automated mass production.
Machining Capabilities
Rigid hard-rail gang tooling delivers positioning accuracy within 0.005 mm and supports hard turning up to HRC 65. It supports gang turning, turret turning, turret grinding and turret milling.
Technical Data
Control Type: CNC / Manual
| Machine Performance | |
| Max. Swing Diameter | 200 [mm] |
| Carriage to Spindle Center Height | 102 [mm] |
| Spindle Speed | 0-8000 [rpm] |
| Spindle Bore | 14.5/19 [mm] |
| Travel | |
| X-axis Travel | 140 [mm] |
| Z-axis Travel | 240 [mm] |
| X/Z-axis Programmable Increment | 0.0001 [mm] |
| X/Z-axis Rapid Traverse Rate | 12 [m/min] |
| Turret | |
| Number of Stations | 12 (VDI16) |
| Driven Tool Stations | 6 (DIN5480) |
| Live Tool Max. Speed | 6000 [rpm] |
| Dimensions & Weight | |
| Overall Dimensions | 1795x969x1485 [mm] |
| Net Weight | 1100 [kg] |

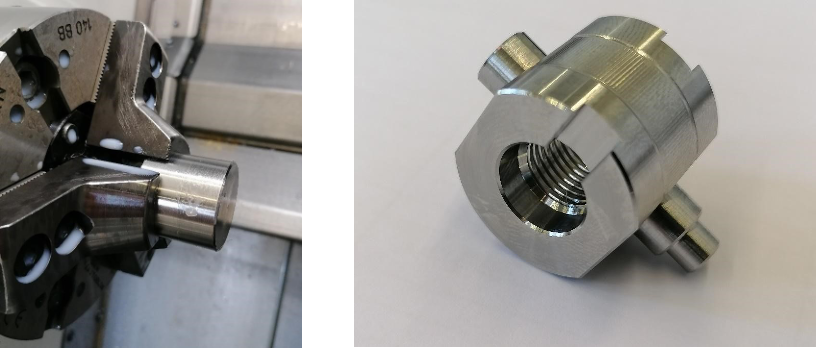

Workpiece Examples

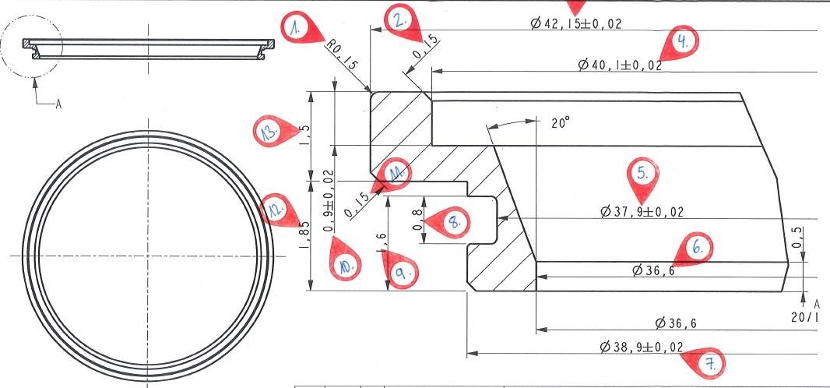

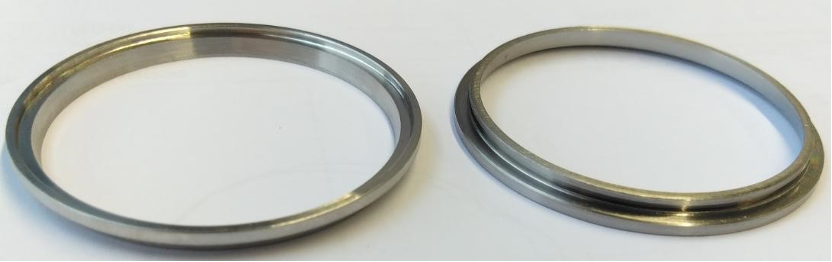

1. Optical Ring | 1.4404 Stainless Steel

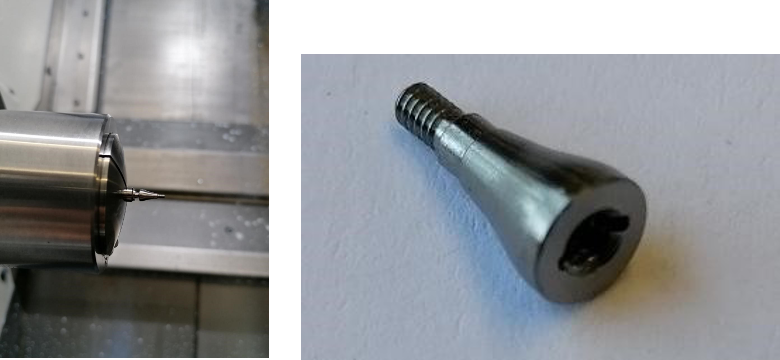

2. Dental Screw | Grade 5 Titanium
3. Valve Seat | 17-4 PH Stainless Steel
